In modern ceramic production, furnace insulation plays a critical role in energy efficiency, thermal stability, and overall production quality. Ceramic fiber modules have become a widely adopted solution because of their outstanding insulation performance, structural flexibility, and maintenance advantages. Their use across various kiln types—such as tunnel kilns, roller kilns, and shuttle kilns—can significantly reduce energy consumption. Additionally, they improve temperature uniformity and extend furnace service life.
Applied on kiln roofs, side walls, kiln car platforms, and door seals.
Due to their light weight (bulk density around 200–250 kg/m³), they markedly reduce the load on kiln structural steel. This reduction can reach up to 30%.
Thermal insulation is strong. With low thermal conductivity (e.g. ~0.08–0.15 W/(m·K)), they cut heat loss by up to 40% compared with conventional refractory brick linings.
Kiln car sealing systems
Modules fill gaps around kiln cars and lid interfaces. This prevents heat leakage during high-temperature firing cycles and eliminates issues caused by aging or deteriorating seals.
Special kiln types and frequent-cycling kilns
For shuttle kilns with daily start–stop cycles, the thermal shock resistance and low thermal mass of fiber modules enhance reliability and speed. Heating-up rates can increase by approximately 30%.
In glaze or glass-ceramic firing kilns, where temperature consistency is critical, fiber modules aid in stabilizing furnace temperatures and reducing thermal fluctuations.
Four Major Technical Advantages
Energy Saving and Cost Efficiency
Due to much lower heat capacity than dense refractory bricks, kilns insulated with fiber modules can save 20–40% energy. These savings are especially notable in intermittent or cyclic firing operations.
Modular installation shortens construction or retrofit time by roughly 60–70%. In case of localized damage, individual modules can be replaced, reducing downtime and maintenance costs by around 40%.
High Temperature Resistance and Corrosion / Wear Resistance
High-grade fiber modules designed for high thermal environments (e.g., up to 1250–1400 °C zones) remain stable under severe conditions.
In corrosive or aggressive kiln atmospheres (e.g., glazing fume exposure), appropriately composed fiber modules resist degradation. They deliver a service life that’s often 2–3 times longer than conventional lining materials.
Lightweight Structure and Reduced Structural Load
With densities around 200–250 kg/m³, fiber modules are far lighter than dense refractory bricks. Using them reduces structural load and simplifies furnace shell design.
The lightweight nature also simplifies retrofitting older kilns that were not designed for heavy refractory burdens.
Flexible, Modular Construction and Maintenance Convenience

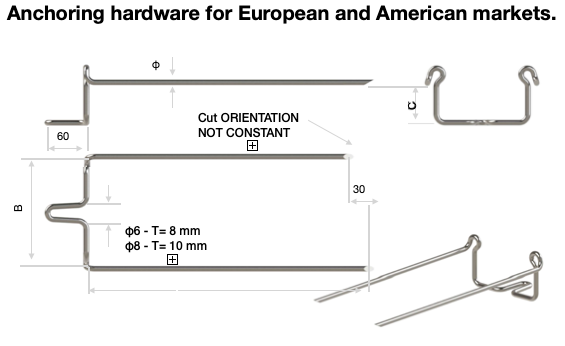

Modules can be anchored to the kiln shell using mechanical anchor systems, enabling dry installation without long curing times.
Unlike rigid brick linings, fiber modules are more accommodating to thermal expansion and contraction. Their elasticity helps absorb stress, lowering the risk of cracking or spalling during thermal cycles.
Technical and Selection Considerations
When specifying ceramic fiber modules for kiln applications, it’s important to consider:
Temperature classification: Choose a module rated properly for the kiln’s maximum operating temperature. Standard ceramic firing kilns typically require modules rated for 1260 °C–1400 °C. High-temperature zones may require higher-rated or specially composed modules.
Bulk density: Lower-density modules offer quicker heating and cooling response; higher-density modules provide better mechanical strength and durability.
Thermal conductivity and insulation performance: Lower conductivity yields better energy saving and heat-loss reduction.
Anchoring and installation method: Ensure a reliable anchoring system for stable fixation, particularly on side walls and roof surfaces. Correct installation is essential to avoid gaps and ensure long-term insulation integrity.
Chemical and thermal environment: In kilns exposed to corrosive atmospheres (e.g., glazing fumes, flux vapors), select fiber modules with chemical-resistant compositions. For example, consider high-alumina or zirconia-enhanced fibers.
Maintenance and accessibility: Because of their modular and replaceable nature, design the kiln layout such that high-wear zones are accessible for quick maintenance. This can occur without shutting down the entire kiln.
Strategic Benefits for Ceramic Production Facilities
Adopting ceramic fiber modules aligns well with modern demands for energy efficiency, lean manufacturing, and sustainable production. Specific benefits include:
Lower fuel or power consumption → reduced operating costs
Faster heating and cooling cycles → increased production throughput
Easier maintenance and shorter downtime → improved uptime and yield
Resistance to thermal cycling and corrosive atmospheres → longer lining lifespan → lower total lifecycle cost
Conclusion
Ceramic fiber modules offer a high-performing, cost-effective insulation solution for a wide variety of ceramic kiln types—from tunnel kilns and roller kilns to shuttle and glaze-firing kilns. Their combination of light weight, low thermal conductivity, high temperature tolerance, and modular design makes them an attractive alternative to traditional refractory bricks.
For ceramic manufacturers planning to build new kilns or upgrade existing ones with goals of energy saving, improved thermal performance, and reduced maintenance, ceramic fiber modules are a reliable and forward-looking choice.
