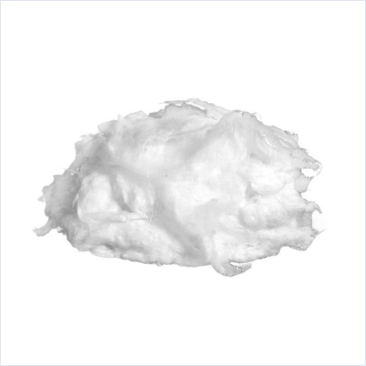

Ceramic Fiber Bulk

Introduction

Hengrui ceramic fiber bulk is produced by melting the very pure raw materials in high temperature, take use of spun or blowing method with characteristics of stable chemical performance, resistance to the erosion of most chemicals. The physical property like refractory and insulation keep same when meet with oil,water or steam.

Ceramic fiber blanket/ felt/ board/ paper/ cloth/ rope and other ceramic fiber products can be produced by bulk through further processing. Hengrui ceramic fiber bulk is a kind of insulating materials which has these characteristics, such as light-weight, anti-oxidation, low thermal conductivity, softness, anti-corrosion, low heat capacity, sound insulation and so on.

Technical Index

Bulk Fiber		HR1050C-BF	HR1260ST-BF	HR1260HP-BF	HR1350HA-BF	HR1400LZ-BF	HR1430HZ-BF	HR1500Cr-BF	HR1600PCF-BF
Max·Service Temp.		1050	1260	1260	1350	1400	1430	1500	1600
Shot Content(%)(θ≥0.212mm)		≤22	≤22	≤20	≤20	≤18	≤18	≤20	≤3
Fiber Diameter(um)		3-5	2-4	3-5	2-4	3-5	3-5	3-5	3-6
Chemical Composition(%)	Al2O3	≥38	≥42	≥45	52-55	≥37	≥37	≥37	≥70
Chemical Composition(%)	Al2O3+SiO2	≥97.0	≥98.0	≥98.0	≥98.0	≥92	≥83	≥93	≥99
Chemical Composition(%)	ZrO2	-	-	-	-	5-7	15-17	-	-
Chemical Composition(%)	Cr2O3	-	-	-	-	-	-	3-5	-
Chemical Composition(%)	Others	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
Package		Packing in bags or cartons，20kg/ bag or 10kg/ carton
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

1. Precise size and smooth surface.
2. Easy to cut and install, and convenient to construct.
3. Low impurity content; identical bulk density and thickness.
4. Excellent mechanical and structural strength.
5. Low thermal conductivity and low shrinkage.
6. Ability to resist the scouring of airflow.

Applications
