Refractory Ceramic Fibre

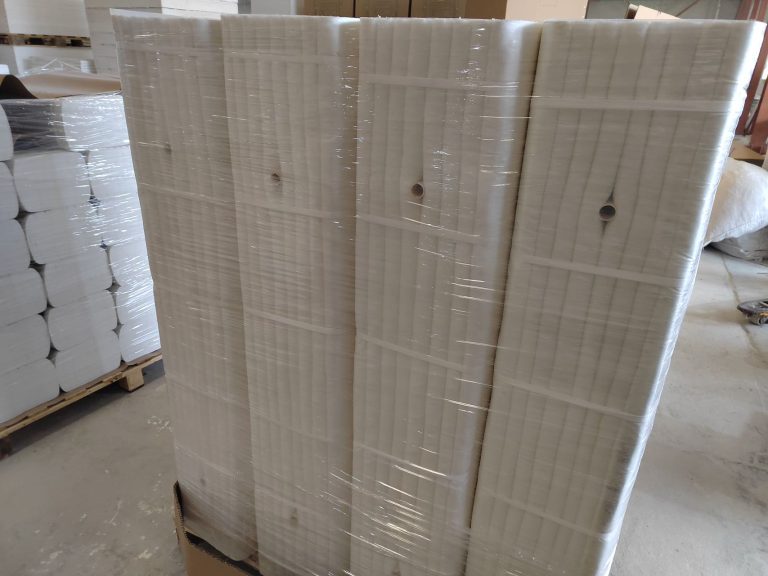

Plastic Encapsulated Ceramic Fiber Module

Applications:

Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace，hot air and flue pipes etc.
Green energy industry：Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.

 

Introduction

Hengrui plastic encapsulated ceramic fiber module is a massive refractory fiber product made of ceramic fiber blanket folded or cut and stacked by experienced technicians and processed by professional equipment.

Classification and Specification

PC. Ceramic Fiber Modules		HR1050C-RM-PC	HR1260ST-RM-PC	HR1260HP-RM-PC	HR1350HA-RM-PC	HR1400LZ-RM-PC	HR1430HZ-RM-PC	HR1500Cr-RM-PC	HR1600PCF-RM-PC
Max·Service Temperature		1050	1260	1260	1350	1400	1430	1500	1600
220kg/m3/at()℃/24hLinear Shrinkage Rate		≤3.0(950℃)	≤3.0(1000℃)	≤3.0(1050℃)	≤3.0(1200℃)	≤3.0(1250℃)	≤3.0(1300℃)	≤3.0(1350℃)	≤1.5(1450℃)
（KG/M3）Density		172/192/210/220/230/240
Processing method		Fold / cut / half fold
(W/m.k)Thermal Conductivity Rate	400℃	0.14	0.09	-	-	-	-	-	-
	600℃	0.20	0.16	0.16	0.16	0.16	0.15	0.15	-
	800℃	0.25	0.23	0.23	0.23	0.23	0.23	0.23	0.27
	1000℃	-	-	0.36	0.36	0.36	0.35	0.35	0.38
）Chemical Composition（After burning）	Al2O3	≥38	≥42	≥45	≥52	≥37	≥37	≥37	≥72
	Al2O3+SiO2	≥97	≥97	≥98	≥98	≥92	≥83	≥93	≥99
	ZrO2	-	-	-	-	5-7	15-17	-	-
	Cr2O3	-	-	-	-	-	-	3-5	-
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
（Standard Size）		600/300300300/250/200/150mm，1500mm
Matching SS Anchors		Material：201/304/310/316；Shape：Butterfly / diamond / angle iron
（Package）		（Carton or Pallet）
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

Environmental friendly
The installation is more efficient and convenient.
Moistureproof and antifouling, safety and environmental protection.

Applications

scene 01

Green energy industry：

Waste incinerators,

RTO exhaust treatment furnace,

SCR environmental catalytic stove etc.

scene 02

Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.

scene 03

Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace，hot air and flue pipes etc.

scene 04

Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
