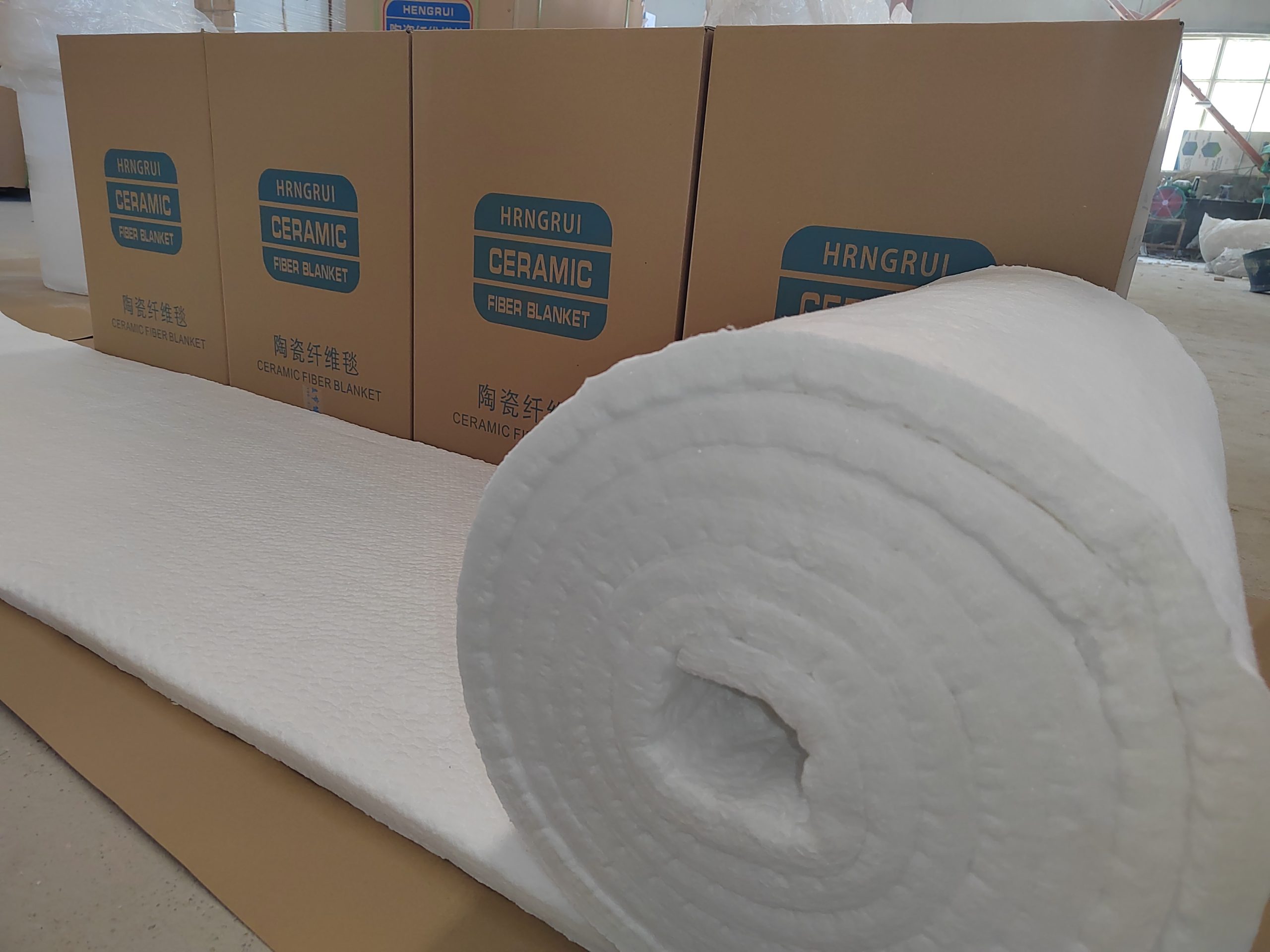

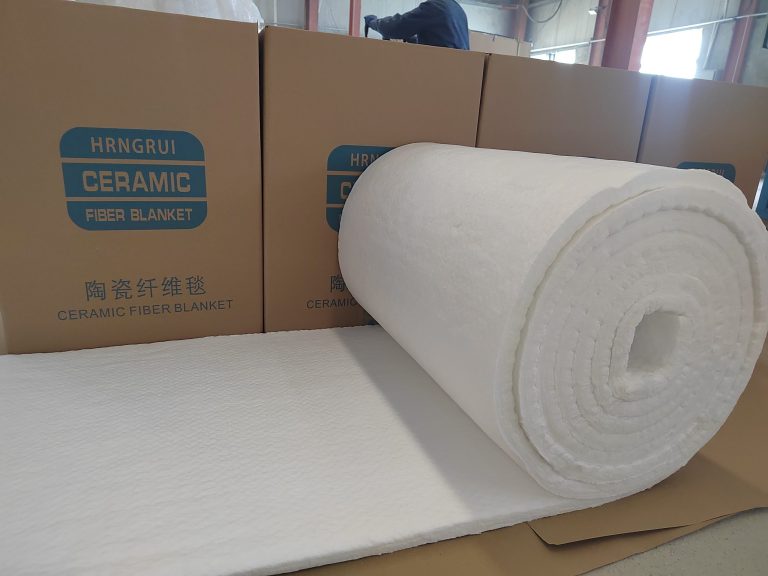

Ceramic Fiber Blanket ( Rolling Felt)

Introduction

Hengrui ceramic fiber blanket is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber intertexture, and the performance of delamination resistance as well as tensile strength. The blanket does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to the erosion of most chemicals,The physical property like refractory and insulation keep same when meet with oil,water or steam.

Hengrui ceramic fiber blanket can be cut into different sizes according to the user needs. They can also be wrapped with aluminum foil on one or both sides to meet the requirements of different industries.

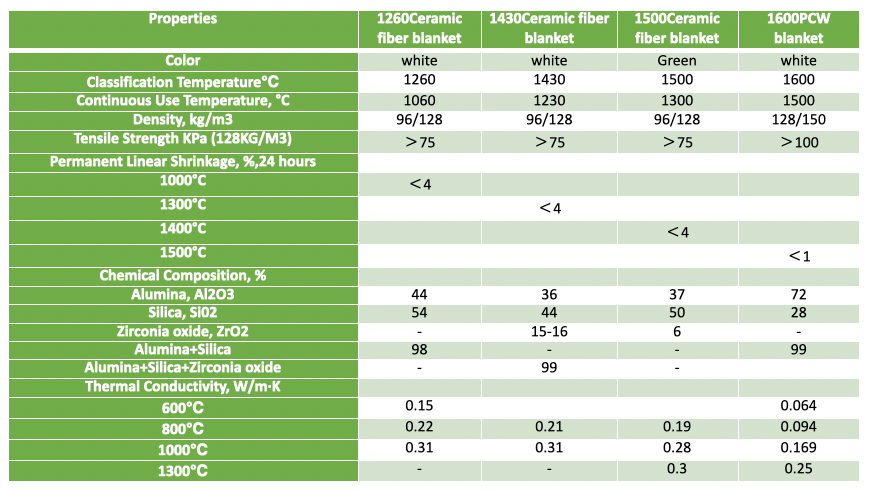

Technical Index

Ceramic Fiber Blanket		HR1050C-RB	HR1260ST-RB	HR1260HP-RB	HR1350HA-RB	HR1400LZ-RB	HR1430HZ-RB	HR1500Cr-RB	HR1600PCF-RB
Max·Service Temperature		1050	1260	1260	1350	1400	1430	1500	1600
（KG/m3）Density		96/128/140/160							130-170
（24h,128 Kg/M3）Liner Shrinkage		≤4.0 950℃	≤4.0 1050℃	≤4.0 1100℃	≤4.0 1200℃	≤4.0 1250℃	≤4.0 1350℃	≤4.0 1400℃	≤1.0 1500℃
Kpa(128Kg/M3)Tensile Strength		70	75	75	55	75	75	55	75
(W/m.k)128 Kg/M3Thermal Conductivity Rate	600℃	0.20	0.15	0.15	-	-	-	-	-
	800℃	0.29	0.22	0.21	0.21	0.21	0.21	0.19	0.19
	1000℃	-	0.31	0.30	0.31	0.31	0.31	0.28	0.28
）Chemical Composition（After burning）	Al2O3	≥38	≥42	≥45	52-55	≥37	≥37	≥37	≥70
	Al2O3+SiO2	≥97.0	≥98.0	≥98.0	≥98.0	≥92	≥83	≥93	≥99
	ZrO2	-	-	-	-	5-7	15-17	-	-
	Cr2O3	-	-	-	-	-	-	3-5	-
	Others	≤3.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

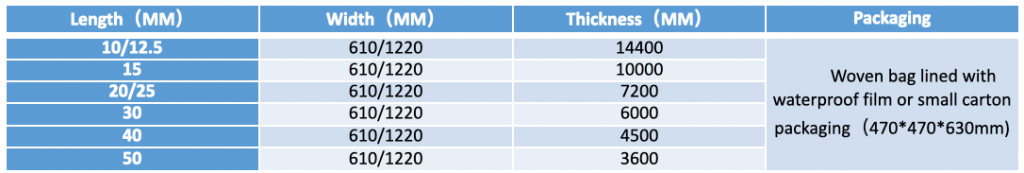

Standard Size and Package

（Length）mm	(Width)mm	(Thickness)mm
7200/14400/28000	610(1220)	6
7200/14400	610(1220)	10/12.5
7200/10000	610(1220)	15
7200	610(1220)	20/25
6000/5000	610(1220)	30
4500/3600	610(1220)	40/50

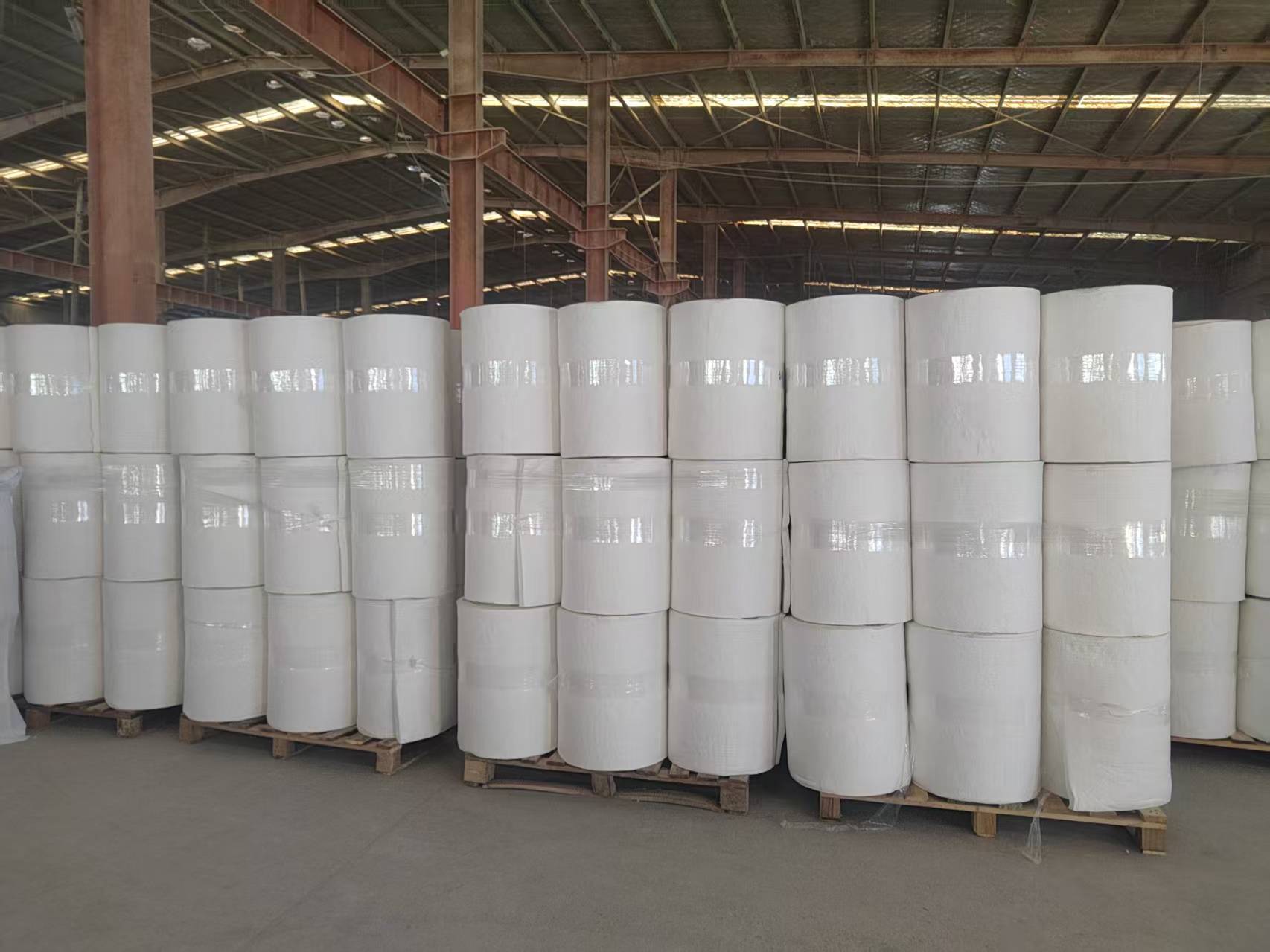

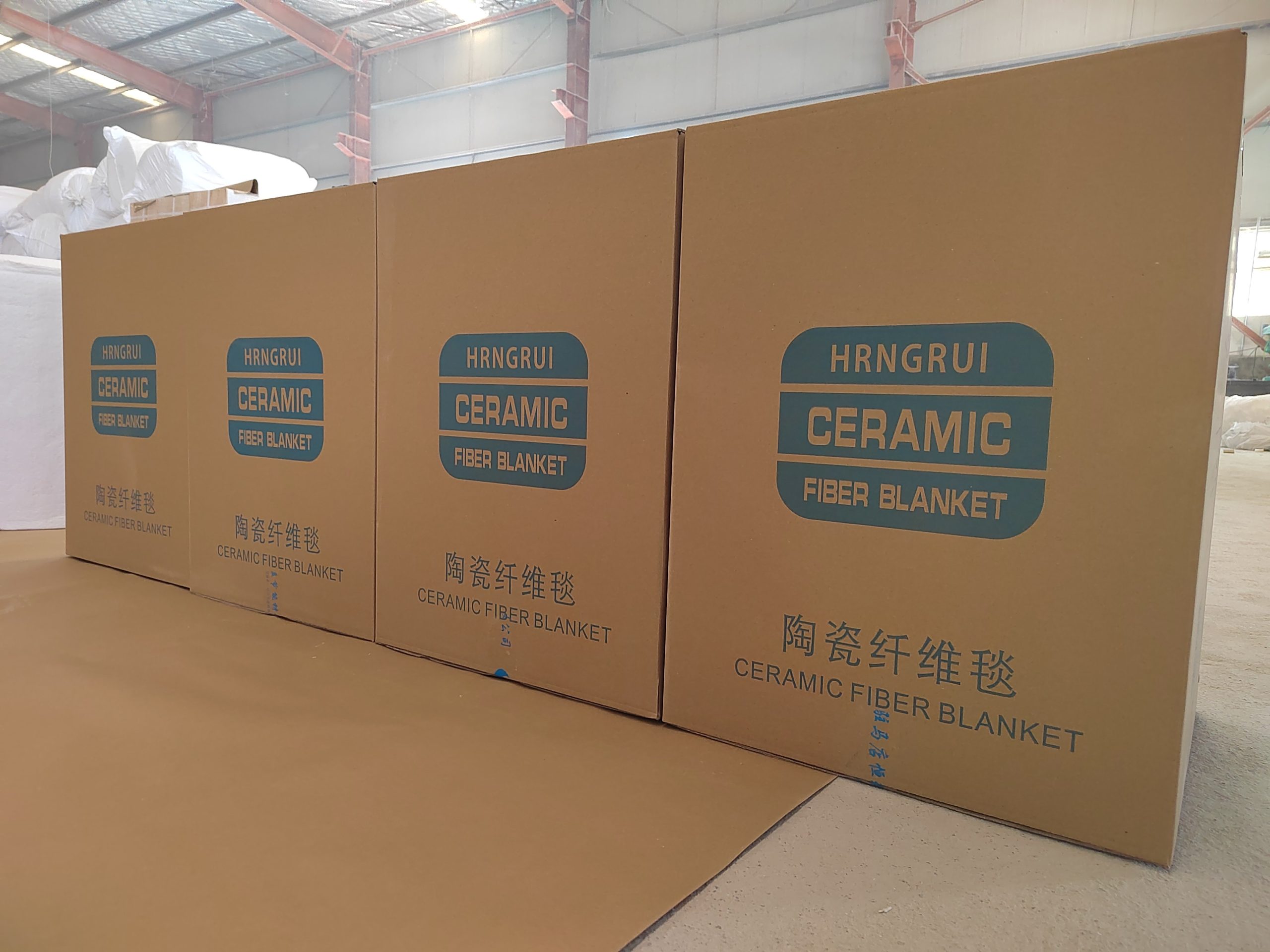

（Package）	（Paper Cartons or woven bags）
（Other specifications according to customer's inquires）。

Characteristics

1. Excellent chemical stability,nonflammable .
2. Low thermal conductivity and good insulation.
3. Good tensile strength and springiness.
4. Excellent performance of soundproofing Good obstructing and resistance to heat-shock.

Applications
