product

Calcium Silicate

Non-Asbestos Refractory Calcium Silicate Products

Applications:

  • Mainly used in electric power, metallurgy, petrochemical, aluminum and other industrial thermal equipment and backing insulation for pipeline.
CONTACT US

    Introduction

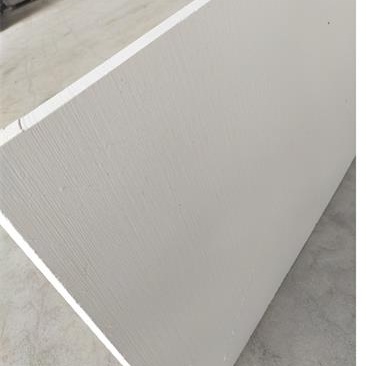

    Hengrui Non-Asbestos Refractory Calcium Silicate Products is a new type of environmentally friendly energy-saving materials, has a good fire insulation effect. The main substrate is Sio2 and Cao powder, reinforced material are natural fiber. It can be processed into a plate and shell ranging from 650℃to1000℃according to different needs.

    Technical Index

    Calcium Silicate Products HR-CS650HR-CS1000
     Density（KG/M3）170/220/280170/220/240
      Compressive strength（MPa）≥0.35≥0.35
    W/m.kThermal conductivity (average temperature 70 ℃)0.0520.048
    Maximum temperature（℃）6501000
      Linear shrinkage（%）≤2（650,12hrs）≤2（1000,12hrs）
    It can be processed into a shell and tube or curved panels according to customer requirements.

    Characteristics

    1. Low thermal conductivity，good thermal insulation.
    2. Low heat Shrinkage, good thermal stability.resistance to most of the erosion.
    3. Water bearable，keep constant performance after drying.
    4. Light weight, high compressive strength ,easy installation.
    5. Safely in use and non-toxic,no poisonous substance,free of asbestos.

    Applications

    scene 01

    Mainly used in electric power, metallurgy, petrochemical, aluminum and other industrial thermal equipment and backing insulation for pipeline.
