Ceramic Fiber Rope

Introduction

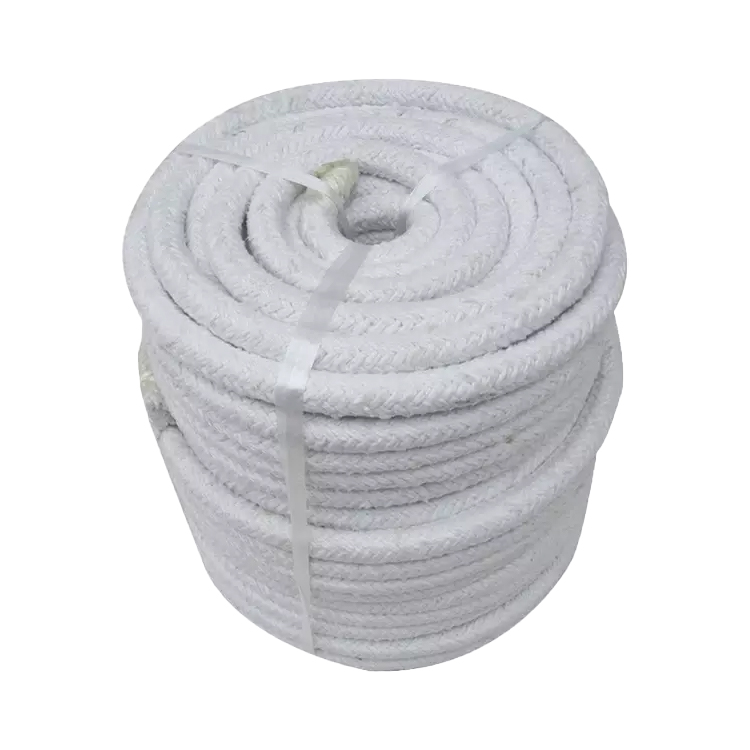

Ceramic fiber round braided rope and ceramic fiber square braided rope, also known as ceramic fiber packing and aluminum silicate packing, are composed of core material and outer cladding layer. The core material is twisted from ceramic fiber yarn, and the outer cladding is woven from ceramic fiber yarn reinforced with heat-resistant alloy wire or alkali-free glass yarn.

The products are not only have the performance of thermal insulation, but also have the tenacity of common textile.

Specifications and classification

（Item）	(Steel Wire Reinforced and Glass Fiber Reinforced)
（Ceramic Fiber Cloth）	（Width）:1000/1500（mm）;（Thickness）:1.5/2/3/4/5/6（mm）
（Ceramic Fiber Tape）	（Width）:10-150（mm）;（Thickness）:2/3/4/5/6（mm）
（Ceramic Fiber Twist Rope）	（Diameter）:5/6/8/10/12/14/16/18/20/25/30/35/40/50（mm）
（Ceramic Fiber Round Rope）	（Diameter）:5/6/8/10/12/14/16/18/20/25/30/35/40/50（mm）
（Ceramic Fiber Square Rope）	Size）:6*6,8*8,10*10,12*12,15*15,16*16,18*18,20*20,25*25,30*30,35*35,40*40,45*45,50*50,60*60（mm）
（Aluminum foil fiber cloth）	（Width）:1000/1500（mm）;（Thickness）:1.5/2/3/4/5/6（mm）
（Other specifications according to customers inquires）。

Technical Index

（Item）	(Ceramic Fiber Reinforced By Fiberglass)	（Ceramic Fiber Reinforced By steel Wire）
（℃）Max·Service Temperature	650℃	1000℃
（%）Organic Content	≤15	≤15
(Density)	500-600kg/m3	500-600kg/m3
(Package)	Cartons or bags）	（Cartons or bags）

Characteristics

1. Low thermal conductivity, excellent thermal insulation performance.
2. Excellent tensile properties.
3. Resistance to the acid, oil and other erosions.
4. Excellent mechanical strength and resistance to heat-shock.

Applications
