Ceramic Fiber Fire Baffle Board

Introduction

Ceramic fiber fire baffle is a high-strength fiber plate produced with specific refractory additives. This product has tough texture, high compressive strength, excellent high temperature resistance and excellent supporting force; it can be used as a fire baffle in the temperature range of industrial kilns. Good heat resistant material. In addition, according to application requirements, there are vacuum-formed ceramic fiber board products with higher bulk density, and the heat insulation performance, wear resistance and strength of the board are further improved. The formula of the ceramic fiber fire baffle contains a small amount of organic binder to enhance its cold strength, and the organic matter can be burned at about 200 ℃ to 300 ℃ for the first time.

Ceramic fiber fire baffle has the following advantages: low heat capacity, low thermal conductivity; non-brittle material, good elasticity; wind erosion resistance, long service life; excellent thermal stability and thermal shock resistance; rigidity, self-supporting plate; good Excellent anti-stripping properties; easy to shape or cut.

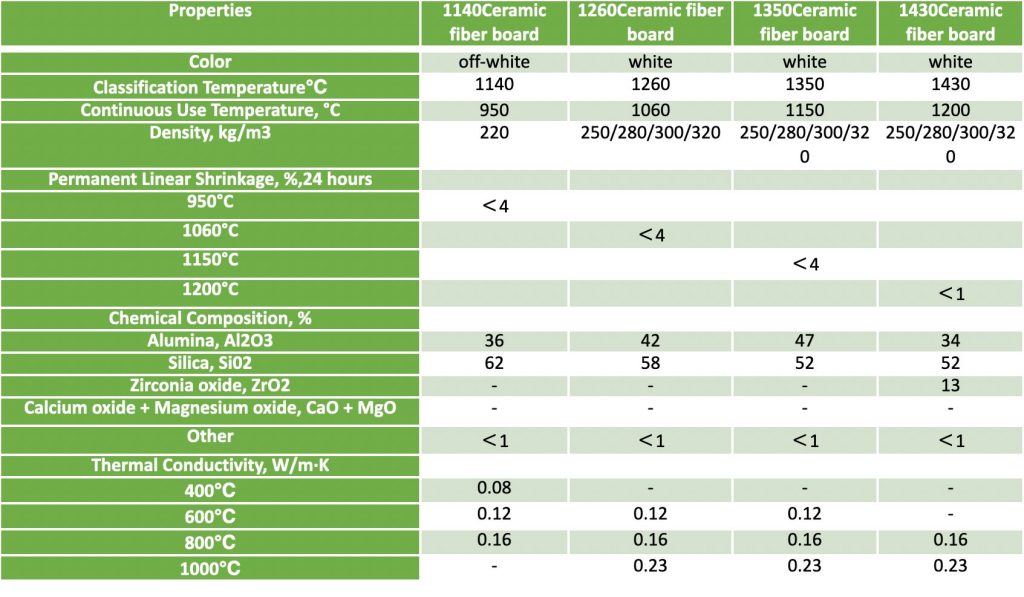

Technical Index

Ceramic fiber baffle board		HR1050 C-RBD	HR1260 ST-RBD	HR1260 HP-RBD	HR1350 HA-RBD	HR1430 Zr-RBD	HR1600 PCF-RBD	HR1700 PCF-RBD	HR1800 PCF-RBD
Max·Service Temperature		1050	1260	1260	1350	1430	1600	1700	1800
Density		220/250/280/300/320/350/380/400					400/450/500/550
Linear shrinkage（After burning）		≤3.0 950℃	≤3.0 1050℃	≤3.0 1100℃	≤3.0 1200℃	≤3.0 1300℃	≤1.0 1450℃	≤1.0 1550℃	≤1.0 1650℃
Modulus of rupture（MPa）		≥0.3	≥0.4	≥0.4	≥0.4	≥0.4	≥0.6	≥0.6	≥0.6
Loss on ignition（%）		≤8.0					≤4.0
Thermal conductivity      rate (W/m.k)	400℃	0.08	-	-	-	-	-	-	-
	600℃	0.12	0.12	0.12	0.12	-	-	-	-
	800℃	0.16	0.16	0.16	0.16	0.16	0.17	0.17	0.17
	1000℃	-	0.23	0.23	0.23	0.23	0.23	0.23	0.23
Chemical Composition（After burning）（%）	Al2O3	≥37	≥41	≥43	≥45	≥37	≥65	≥70	≥72
	Al2O3+SiO2	≥97	≥97	≥98	≥98	≥84	≥99	≥99	≥99
	ZrO2	-	-	-	-	≥11	-	-
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤1.0	≤1.0	≤1.0

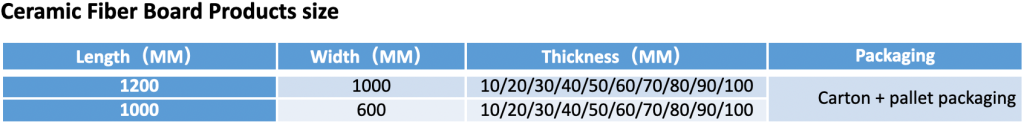

Standard Size （L*W*T）mm		1200/600*1000*(6-105)，1200*500*(6-105)					1000/900*600*20-150
Package		Paper Cartons or Non-fumigation Pallets					Non-fumigation wooden box
Other sizes of products and packages are available as required. Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

1. Precise size and smooth surface.
2. Easy to cut and install, and convenient to construct.
3. Low impurity content; identical bulk density and thickness.
4. Excellent mechanical and structural strength.
5. Low thermal conductivity and low shrinkage.
6. Ability to resist the scouring of airflow.
