High Temperature Resistant Ceramic Filter Tube | 600–900°C Filtration Solution

Advanced Ceramic Filtration Tube for Flue Gas Dust Removal

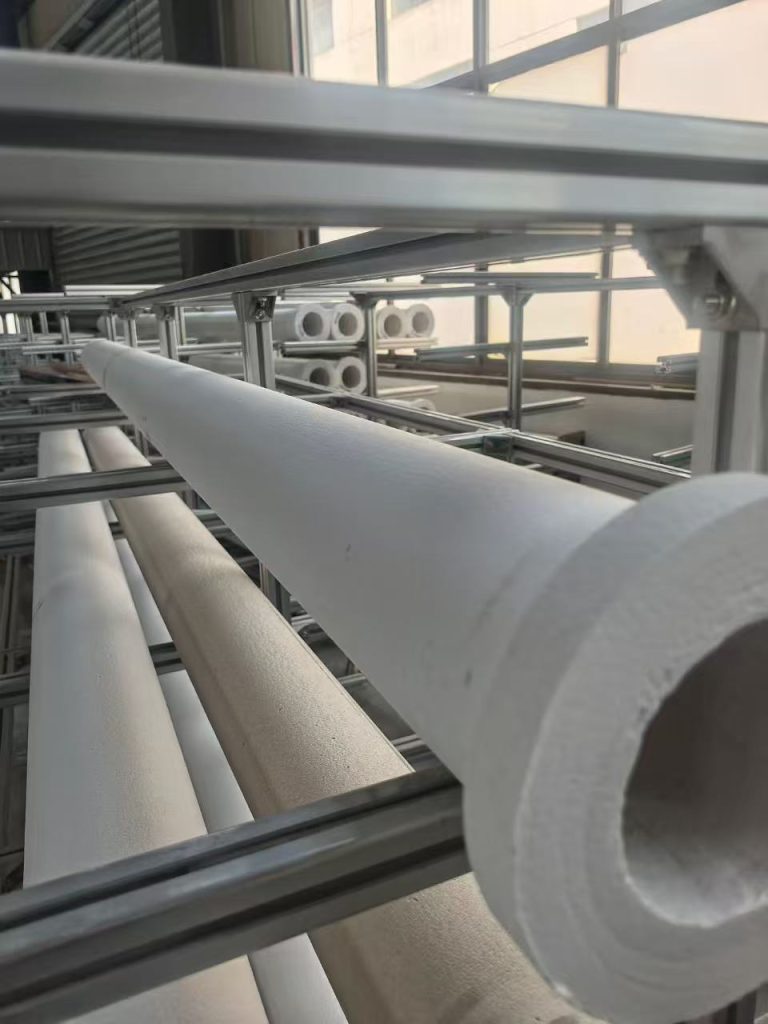

The HT900 high temperature resistant ceramic filter tube is a next-generation solution developed for industrial dust collectors operating under extreme heat conditions ranging from 600°C to 900°C. It offers superior dust removal efficiency, high mechanical strength, low resistance, and extended service life, making it ideal for flue gas purification and acid component removal in high-temperature industrial furnaces.

Why Choose Ceramic Filtration Tubes for High-Temperature Gas Purification

Traditional dust removal technologies such as bag filters, electrostatic precipitators, and cyclone dust collectors struggle under high-temperature conditions:

• Fabric filters (e.g., PTFE) can only withstand up to 260°C before burning or melting, requiring costly cooling systems.
• Electrostatic precipitators lose efficiency above 370°C due to particle resistivity changes and component deformation.
• Cyclone separators, though capable of enduring up to 900°C, fail to effectively capture fine particles (below 10μm, like PM2.5).
• Wet scrubbers consume excessive water, generate secondary pollution, and waste recoverable heat.

The HT900 ceramic dust filter overcomes these challenges by maintaining stable filtration efficiency (≥99%) and high structural integrity even at 900°C.

Product Overview

Product Name: HT900 Ceramic Fiber Filter Tube

Operating Temperature: 600–900°C

Filtration Efficiency: ≥99% for industrial dust and fine particles

Acid Gas Removal Efficiency: ≥95% for SO₂, HCl, and other acidic components

Expected Service Life: 5 years standard; up to 8–10 years under optimal conditions

Applications: High-temperature flue gas filtration, industrial kiln exhaust purification, and ultra-clean emission systems

Key Features & Advantages

1. Excellent High-Temperature Resistance (600–900°C)

The HT900 ceramic filtration tube for flue gas dust removal is engineered with optimized raw material ratios and precision sintering technology, ensuring long-term reliability under continuous high-temperature operation.

2. High Porosity and Low Pressure Drop

The advanced ceramic fiber structure ensures high porosity and nano-scale pore distribution, allowing efficient gas flow with minimal pressure loss, leading to energy savings and stable furnace operation.

3. High Strength and Long Lifespan

Enhanced by reinforced flanges and sealed ends, each filter tube demonstrates superior mechanical strength and durability, maintaining performance for up to a decade in stable environments.

4. Dual Filtration and Absorption Function

A unique adsorption filter cake layer forms on the tube’s surface during operation. This layer not only captures fine particulates but also absorbs over 95% of acid gases, achieving simultaneous dust and gas purification.

5. Eco-Friendly and Low Maintenance

Unlike wet or fabric filters, ceramic filter tubes produce no wastewater or secondary pollution. Their durability minimizes replacement frequency, reducing both maintenance and operating costs.

Applications

The HT900 high temperature ceramic filter tube is widely used in:

• Industrial furnaces and kilns (cement, metallurgy, glass, ceramics)
• Waste incineration and biomass power plants
• High-temperature gas purification systems
• Acidic flue gas treatment and emission control units

Its exceptional temperature tolerance and dust removal performance make it the ideal choice for modern ultra-clean emission systems.

Technical Highlights

Parameter	Specification
Operating Temperature	600–900°C
Dust Removal Efficiency	≥99%
Acid Gas Removal Efficiency	≥95%
Material	Advanced ceramic fiber composite
Structure	Multi-layer porous body with reinforced ends
Service Life	5–10 years (depending on conditions)

Upgrade to HT900 Ceramic Dust Filter Technology

Experience a reliable, efficient, and sustainable solution for industrial dust removal. The HT900 high temperature ceramic filter tube ensures maximum filtration efficiency, energy savings, and long-term operational stability, helping industries meet stricter environmental standards while reducing maintenance costs.
