Applications of Ceramic Fiber in Wafer Furnaces

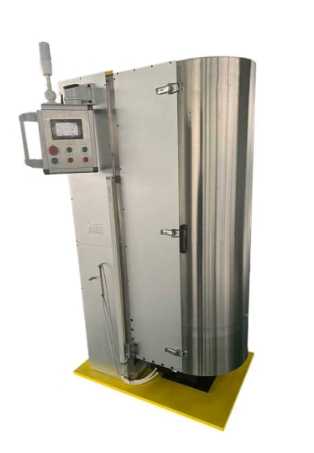

I. Single Crystal Furnace (Single Crystal Furnace)

A single crystal furnace is a device used for growing high-purity single crystal materials. By controlling temperature fields, atmosphere, pressure, and crystal pulling rates, atoms in the melt arrange themselves according to the crystal lattice to form single crystals. In recent developments, the use of ceramic fiber in wafer furnaces has improved efficiency and temperature control. Single crystal furnaces are widely used in the semiconductor, optoelectronic, and infrared material industries, and are essential for producing single crystals of silicon, gallium arsenide (GaAs), and indium phosphide (InP).

Core Components:

1.Heating system (resistive or induction heating)

2.Thermal field system (insulation, heat conduction, and temperature uniformity control)

3.Crystal pulling mechanism

4.Control system (precise control of temperature, pulling rate, and rotation)

Applications of Ceramic Fiber Heaters:

1.Ceramic fiber heaters can be installed on the furnace inner wall or around the thermal field to provide efficient insulation and reduce energy consumption.

2.They stabilize the temperature distribution inside the furnace, reducing thermal stress and crystal defects.

3.Ceramic fiber heaters are lightweight and easy to process, facilitating furnace maintenance and replacement.

4.High-purity ceramic fibers meet the requirements for a low-contamination crystal growth environment.

II. Crystal Growth Furnace (Crystal Growth Furnace)

Crystal growth furnaces are used to grow crystals in an orderly manner from melts, vapors, or solutions. Common methods include the Czochralski method (CZ), Bridgman method, and Vertical Gradient Freeze (VGF). The design goal is to obtain crystals with high uniformity, high purity, and low defect density.

Applications of Ceramic Fiber Heaters:

1.Used as thermal insulation layers to reduce furnace heat loss and improve temperature control precision.

2.Provide a stable temperature gradient to facilitate uniform crystal growth.

3.High thermal shock resistance allows withstanding rapid high-temperature changes, protecting furnace structures.

III. Gallium Arsenide Single Crystal Furnace (GaAs Crystal Growth Furnace)

Gallium arsenide (GaAs) single crystal furnaces are used to grow III-V semiconductor GaAs crystals, which are essential for high-speed electronic devices and optoelectronic components. Typical processes include VGF (Vertical Gradient Freeze) or LEC (Liquid Encapsulated Czochralski), which precisely control the temperature field to produce low-defect crystals.

Applications of Ceramic Fiber Heaters:

1. High-temperature insulation heaters can be used on the furnace inner wall and around the crucible to improve thermal efficiency.
2. Ceramic fiber heaters help maintain a stable vertical temperature gradient, reducing internal stress and crystal defects.
3. High-purity ceramic fibers reduce furnace contamination, ensuring GaAs crystal quality.
4. Lightweight and easy-to-process heaters facilitate maintenance and replacement, extending equipment lifespan.

IV. Indium Phosphide VGF Single Crystal Furnace (InP VGF Crystal Growth Furnace)

Indium phosphide (InP) VGF single crystal furnaces are used to grow high-purity InP single crystals, which are important for high-speed optical communication devices, lasers, and high-frequency transistors. The VGF method controls the vertical temperature gradient, allowing the melt to solidify gradually from bottom to top, producing crystals with low defect density and minimal structural stress.

Applications of Ceramic Fiber Heaters:

1. Used on furnace inner walls and thermal shields to provide efficient heating and improve temperature control accuracy.
2. Ceramic fibers have low thermal conductivity and high-temperature stability, ensuring uniform temperature fields and reducing crystal defects.
3. High-purity ceramic fibers meet the strict cleanliness and low-contamination requirements during InP growth.
4. Lightweight ceramic fiber heaters facilitate maintenance and replacement while extending furnace lifespan.
