Ceramic Fiber Blown Bulk

Introduction

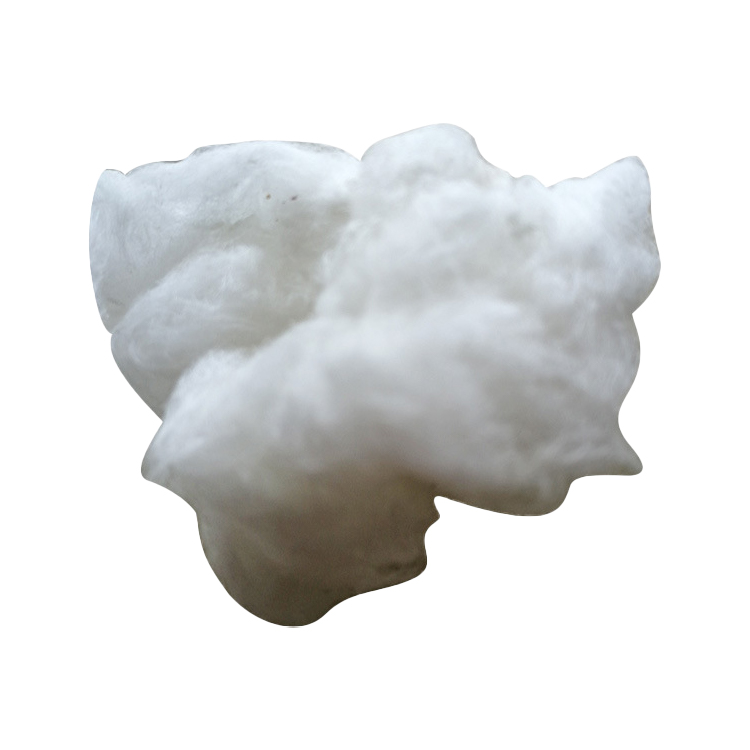

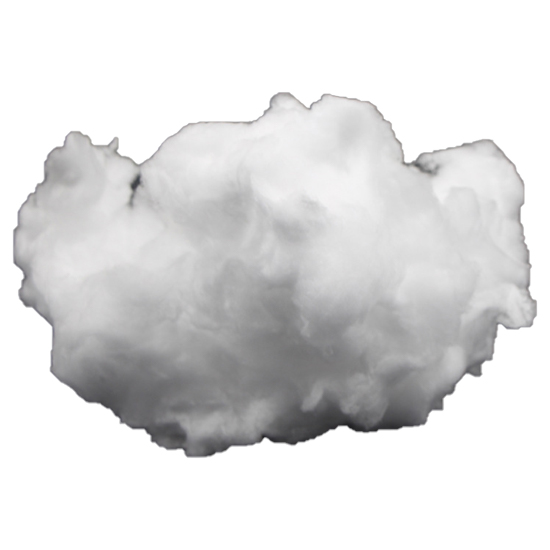

Ceramic fiber blown cotton is made by melting high-purity raw materials at high temperature and using blowing method. The product has uniform diameter and white color.The physical property like refractory and insulation keep same when meet with oil,water or steam.

Ceramic fiber blanket/ felt/ board/ paper/ cloth/ rope and other ceramic fiber products can be produced by bulk through further processing. Hengrui ceramic fiber bulk is a kind of insulating materials which has these characteristics, such as light-weight, anti-oxidation, low thermal conductivity, softness, anti-corrosion, low heat capacity, sound insulation and so on.

Technical Index

Blown Bulk Fiber		HR1050C-BF	HR1260ST-BF	HR1260HP-BF	HR1350HA-BF	HR1400LZ-BF	HR1430HZ-BF	HR1500Cr-BF	HR1600PCF-BF
Max·Service Temp.		1050	1260	1260	1350	1400	1430	1500	1600
Shot Content(%)(θ≥0.212mm)		≤22	≤22	≤20	≤20	≤18	≤18	≤20	≤3
Fiber Diameter(um)		3-5	2-4	3-5	2-4	3-5	3-5	3-5	3-6
Chemical Composition(%)	Al2O3	≥38	≥42	≥45	52-55	≥37	≥37	≥37	≥70
Chemical Composition(%)	Al2O3+SiO2	≥97.0	≥98.0	≥98.0	≥98.0	≥92	≥83	≥93	≥99
Chemical Composition(%)	ZrO2	-	-	-	-	5-7	15-17	-	-
Chemical Composition(%)	Cr2O3	-	-	-	-	-	-	3-5	-
Chemical Composition(%)	Others	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
Package		Packing in bags or cartons，20kg/ bag or 10kg/ carton
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

1. Precise size and smooth surface.
2. Easy to cut and install, and convenient to construct.
3. Low impurity content; identical bulk density and thickness.
4. Excellent mechanical and structural strength.
5. Low thermal conductivity and low shrinkage.
6. Ability to resist the scouring of airflow.

Applications
