Regenerative Thermal Oxidizers (RTOs) are widely used in printing, packaging, coating, chemical, and other industries to treat VOC-laden exhaust gases. Operating at high temperatures, RTO systems require reliable thermal insulation to maintain furnace efficiency, minimize heat loss, and withstand continuous exposure to high-temperature gas flow.

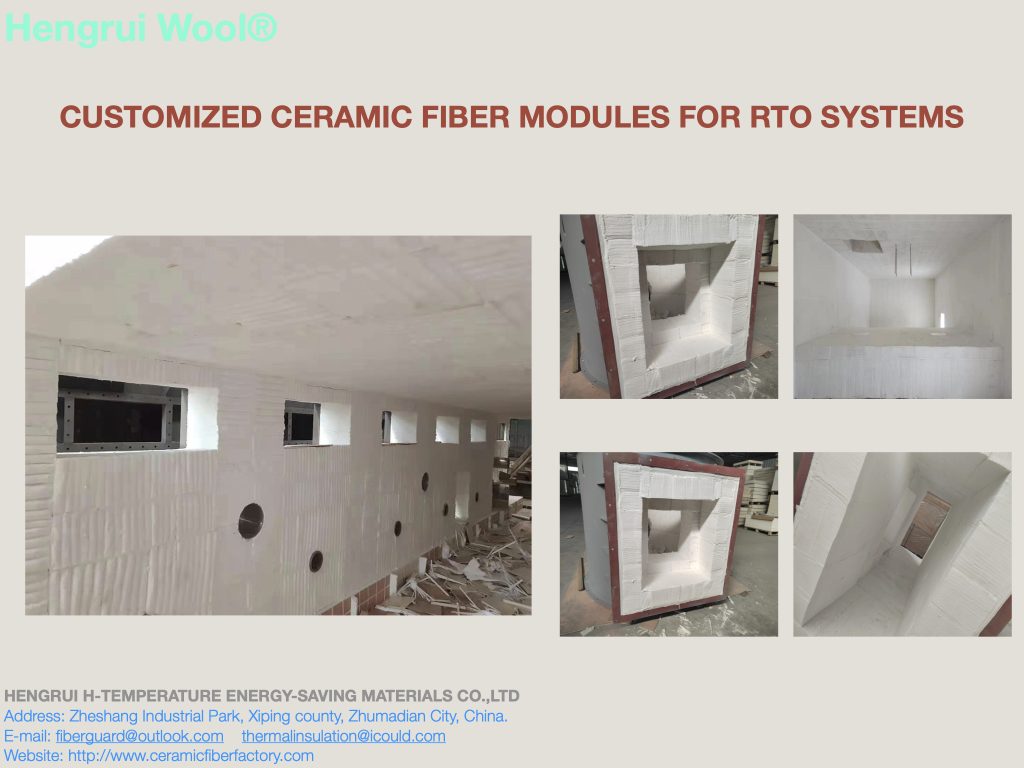

For this RTO application, HENGRUI supplied customized ceramic fiber modules designed for precise installation inside the combustion chamber and other high-temperature areas of the thermal oxidizer.
Designed for RTO Operating Conditions
RTO systems typically combine a combustion chamber, ceramic heat storage beds, switching valves, and heat recovery systems. During operation, organic compounds in industrial exhaust gases are oxidized at high temperatures, producing carbon dioxide and water vapor.
The insulation lining must therefore withstand:
- High operating temperatures
- Continuous thermal cycling
- High-velocity gas flow
- Thermal shock
- Long-term mechanical and thermal stress
HENGRUI ceramic fiber modules are engineered to provide reliable insulation performance in these demanding conditions.
Customized Modules for Precise Furnace Lining
HENGRUI ceramic fiber modules are manufactured from high-quality ceramic fiber blankets through professional folding, cutting, and compression processes.
Using specialized module processing equipment, each module is produced with precise dimensions to ensure a close fit with the furnace structure and facilitate efficient installation.
For complex RTO furnace designs, customized module shapes and dimensions can be manufactured according to customer drawings, furnace structures, and installation requirements.
Reliable Insulation for RTO Thermal Oxidizers
The ceramic fiber module lining helps reduce heat loss from the furnace shell and supports efficient temperature control inside the RTO system.
Its lightweight structure and low thermal conductivity can help reduce heat storage and improve thermal efficiency, while its excellent resistance to thermal shock and gas flow erosion supports stable operation in demanding industrial environments.
Key Product Features
- Low Density and Low Thermal Conductivity
- Excellent Thermal Shock Resistance
- Good Resistance to Gas Flow Erosion
- High Mechanical Strength
- Integrated Anchoring System Available
- Easy and Efficient Installation
- Customized Shapes and Dimensions
Faster Installation. Reliable Thermal Performance.
With an integrated anchoring system, HENGRUI ceramic fiber modules can be securely connected to the furnace structure. The installation process is simple and efficient, helping accelerate furnace lining construction and reduce installation time.
The customized module design also helps improve the fit between the insulation lining and the RTO furnace structure, providing a more efficient solution for complex thermal oxidizer applications.
RTO Applications
HENGRUI customized ceramic fiber modules are suitable for high-temperature insulation applications in:
- RTO Regenerative Thermal Oxidizers
- VOC Exhaust Gas Treatment Systems
- Printing and Packaging Plants
- Coating and Chemical Industries
- Industrial Waste Gas Treatment Equipment
Customized Thermal Insulation for Your RTO Project
Every RTO system has different furnace dimensions, operating temperatures, gas flow conditions, and lining structures. HENGRUI provides customized ceramic fiber modules based on your drawings, specifications, and application requirements.
Send us your RTO furnace drawings or project requirements for a customized insulation solution.
